Put by Light System Demo Kit, PTL System Router, No Screen Pick to Light Wireless Digital Label
Detail Information
Put by Light System Demo Kit, PTL System Router, No Screen Pick to Light Wireless Digital Label
SETP_Label_V11 offers two variants, one with and one without a confirmation button, tailored to meet varying operational needs. Embracing a battery-powered design, this solution incorporates a plug-in button battery pack, ensuring not only ease of replacement but also a robust connection for sustained performance. The thoughtfully designed front battery compartment cover streamlines maintenance, simplifying battery replacements for uninterrupted operations.
SETP_Router_V1.4 serves as the central hub in our Pick by Light series. Equipped with a built-in server program, this base station streamlines data transfer. Users can effortlessly input commands for seamless communication during operations.
|
Model
|
SETP_Label_V11
|
Button
|
1
|
Dimension | 95.8x39.8x12.8mm | Indicator Light | 1 RGB Light |
Case Color | White | Power Supply | Batteries |
|
Battery
|
Button battery pack 2200mAh(CR2477*2)
|
Communication Mode
|
Wireless
|
|
Working Temperature
|
0~50℃
|
Operating Frequency
|
868MHz
|
|
Wireless Firmware Update
|
Yes
|
Battery Lifetime
|
＞1.5 years(10 times per day)
|
|
Model
|
SETP_ Router_V1.4
|
Network
|
1
|
|
The Antenna
|
2
|
Communication Mode
|
868M, RJ45
|
|
Power Supply
|
DC 12V 1A or POE
|
Size
|
21*14*4.3cm
|
|
Operating System
|
linux
|
Working Temperature
|
-10~70℃
|
Wireless Distance | Radius 20-30m | Software Update | Yes |
Number of Pick to Light Labels | >10000 | Server | Built in:
webserver: Tomcat
Server system: JAVA
Database: Mysql
Router |
Access | Web access | Service Interface Protocol | Http, Data format：Json |

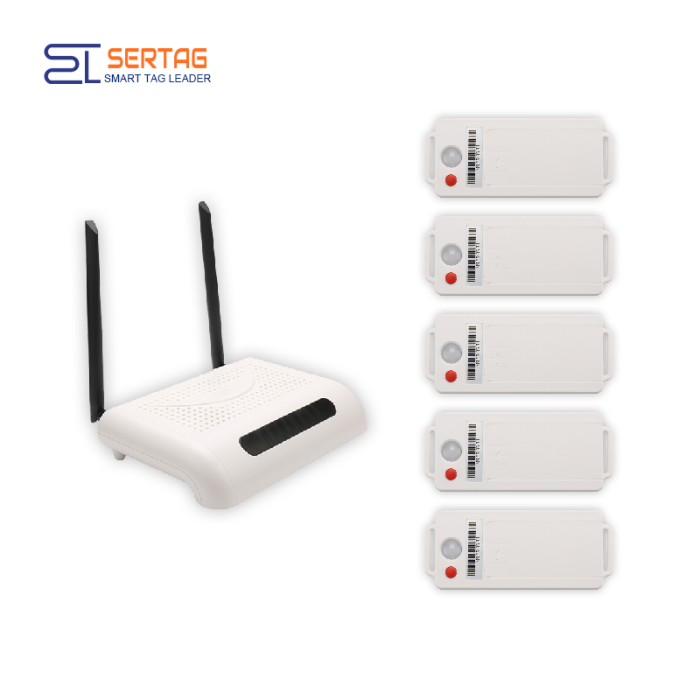

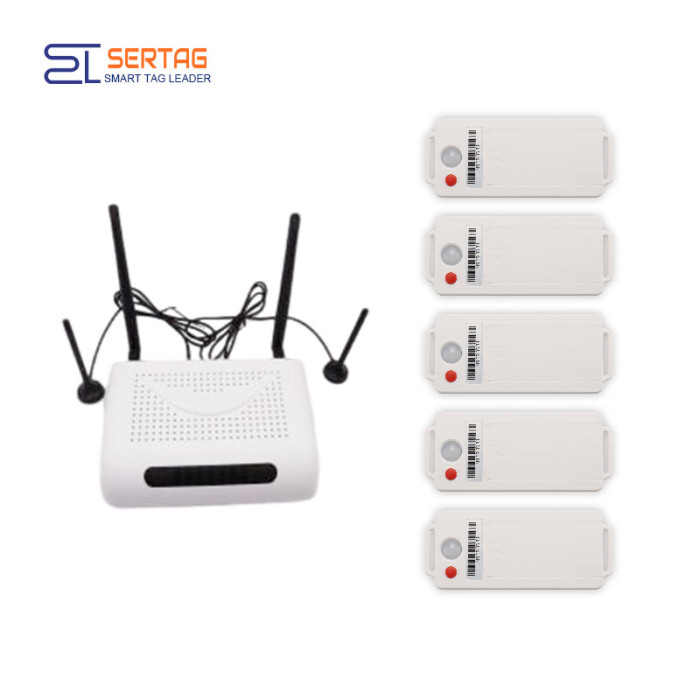

Put by Light Demo Kit with SETP_Label_V11(Battery Powered) Including
① Pick to light system built-in server Base Station SETP_Router_V1.4
② 5 SETP_Label_V11 (Battery Powered)
Put by Light System Demo Kit Working Principle
The SETP_Router_V1.4 serves as the central hub, hosting a built-in server program for seamless data transmission. Users send operational commands to the base station, which relays instructions to the SETP_Label_V11 units.
Put by Light Demo Kit with SETP_Label_V11(Battery Powered) Download
Put by Light System Demo Kit Advantage
Mobility and Portability
Compact design allows for easy movement and swift installation in dynamic warehouse environments.
Battery-Powered Efficiency:
Utilizes a plug-in button battery pack for a robust and easily replaceable power source.
Built-in Server Program
Equipped with a built-in server program, the router eliminates the need for external servers, simplifying the setup and reducing dependency on additional hardware.
Efficient Data Transfer
The router facilitates efficient and reliable data transfer between devices, ensuring real-time communication and enhancing overall operational efficiency.
Put by Light System Demo Kit Application
