Paperless Order Picking Solution Pick to Light Technology External Power Supply Electronic Label
Detail Information
Paperless Order Picking Solution Pick to Light Technology External Power Supply Electronic Label

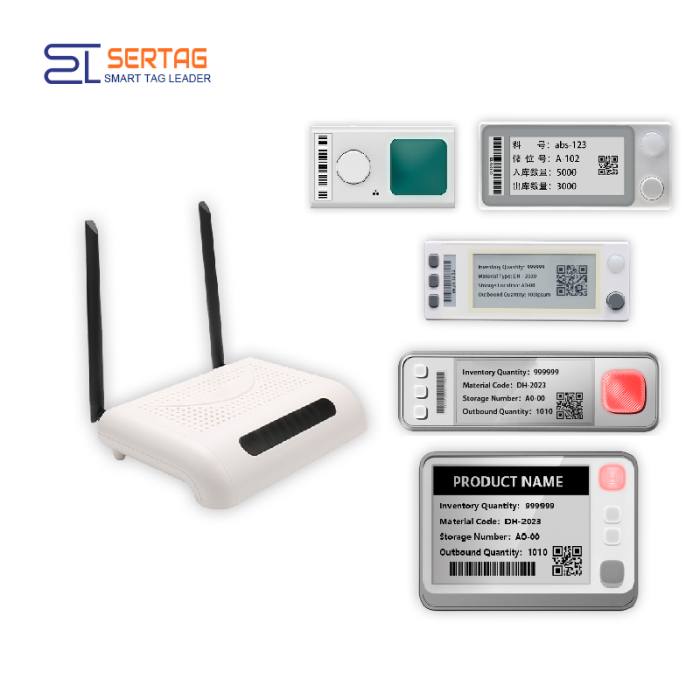

This pick to light kit includes a base station with an integrated server and four e-paper pick-to-light labels (2.13-inch, 2.9-inch, and 4.2-inch), along with a button-light integrated picking label that has no screen, powered by an external 24V supply. This system supports real-time content updates and seamless integration with warehouse management software (WMS).
During the picking process, the system lights up the corresponding label on products or shelves, guiding operators to the correct items. The e-paper displays offer exceptionally low power consumption, surpassing LCD and other screens, ensuring long-term, eco-friendly operation.
SETP_Router_V1.4 serves as the central hub in our Pick by Light series. Equipped with a built-in server program, this base station streamlines data transfer. Users can effortlessly input commands for seamless communication during operations.
Ideal for improving accuracy and speeding up picking operations, this kit is a powerful tool for warehouses aiming for operational excellence.
Pick to Light Demo Kit Including
① Pick by light system built-in server Base Station SETP_Router_V1.4
② SETP_Label_V1 (External Power Supply)
③ SETP_Label_V3 (External Power Supply)
④ SETP_Label_V13 (External Power Supply)
⑤ SETP_Label_V23 (External Power Supply)
⑥ SETP_Label_V24 (External Power Supply)
⑦ 24V power adapter
⑧ Extension cable, can be connected to 30cm.
⑨ Extension cable, 4 pin, can be connected to 30cm.
⑩ Extension cable, connect the DC power supply.
|
Model
|
SETP_ Router_V1.4
|
Network
|
1
|
|
The Antenna
|
2
|
Communication Mode
|
868M, RJ45
|
|
Power Supply
|
DC 12V 1A or POE
|
Size
|
21*14*4.3cm
|
Operating System | linux | Working Temperature | -10~70℃ |
Wireless Distance | Radius 20-30m | Software Update | Yes |
Number of Pick to Light Labels | >10000 | Server | Built in:
webserver: Tomcat
Server system: JAVA
Database: Mysql
Router |
|
Access
|
Web access
|
Service Interface Protocol
|
Http, Data format：Json
|
VPick by Light Digital Picking Labels Demo Kit Working Principle
The SETP_Router_V1.4 serves as the central hub, hosting a built-in server program for seamless data transmission. Users send operational commands to the base station, which relays instructions to the SETP_Label_V13 units.
Pick by Light Demo Kit with SETP_Label_V13(Battery Powered) Download
Pick by Light Digital Picking Labels Demo Kit Advantage
Low Power Consumption
Designed with low power consumption in mind, the pick to light label maximizes the lifespan of the coin cell battery, ensuring prolonged usage before requiring a replacement.
Wide Viewing Angle
With a 180° viewing angle, the display remains easily readable from different perspectives, enhancing visibility and usability.
Built-in Server Program
Equipped with a built-in server program, the router eliminates the need for external servers, simplifying the setup and reducing dependency on additional hardware.
Efficient Data Transfer
The router facilitates efficient and reliable data transfer between devices, ensuring real-time communication and enhancing overall operational efficiency.
Pick to Light Electronic Label Application
